  "WINCO" SD 3144                           "WINCO" SD 534

"WINCO" SD 5, SD 6 & SD 31 SERIES

All blocks are horizontally split type with four attachments hole and four bolt connecting holes between base and cap. These heavy duty blocks is assembled with labyrinth seals and 'O' ring to grip the shaft during rotation

SD 500 Housings for 22230CK bearing for shaft varying 135mm to 300mm.

SD 600 Housings for 22330CK bearing for shaft varying 135mm to 260mm

SD 3100 Housings for 23100CK bearing for shaft varying 150mm to 300mm.



                          "WINCO" S30K

"WINCO" S-30K SERIES

These are hollow feet horizontally split type housings with two attachments holes and two connecting bolts between cap and base. These are adaptor sleeve mounting housings used for heavy loads, and roller bearings 23000CK with shaft dia varying from 100mm to 260mm.







                              "WINCO" F 500A

                              "WINCO" F 500B


"WINCO" F -SERIES BLOCKS.

These are four bolt and three bolt base adaptor mounting type for self-aligning ball and roller bearing. These flange mounting blocks have both open shaft and close shaft ends.

F-500A for closed end and shaft varying from 20mm to 60mm for 1200CK, 2200CK, 22200CK bearings having three bolt base mounting.

F-500B for open end and shaft varying from 20mm to 60mm for 1200CK, 2200CK, 22200CK bearings having three bolt base mounting.

F-500A for closed end and shaft varying from 65mm to 100mm for 1200CK, 2200CK, 22200CK bearings having four bolt base mounting.

F-500B for open end and shaft varying from 65mm to 100mm for 1200CK, 2200CK, 22200CK bearings having four bolt base mounting.

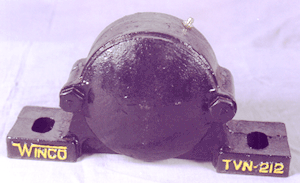

"WINCO" TVN 200                           "WINCO" TVN 300

"WINCO" T.V.N. 2,3 SERIES.

These unsplit housings are for wheel set mounting used in trolleys .Mounting can be made invertly.Used for medium loads and are closed type and also open shaft end types. These housings are having two attachments holes.

Type--A is designated for closed end shaft and Type--B for open end.

TVN-2 A for bearing 1204CC to 1215CC and shaft dia from 20mm---75mm.

TVN-3 A for bearing 1306CC to 21315CC and shaft dia from 30mm---75mm.

TVN-2 B for bearing 1204CC to 1215CC and shaft dia from 20mm---75mm.

TVN-3 B for bearing 1306CC to 21315CC and shaft dia from 30mm---75mm .
